Refractory Bricks for White Lime Kilns: Material Classification, Zonal Selection, Specifications, and Installation.
Ⅰ.Kiln Zoning and Operational Conditions
Zone | Typical Temperature | Primary Damage Mechanisms | Preferred Brick Type | Alternative Solutions |
Calcination/Burning Zone | 1400–1500°C | Strong alkaline (CaO) corrosion, high-temp creep, thermal shock | Ultra-high-alumina (Al₂O₃≥75%), phosphate-bonded high-alumina, Si-Al-O-N (silicon-alumina-oxynitride), magnesia-aluminate spinel bricks | Direct-bonded magnesia-chrome bricks (for low-grade fuel scenarios) |
Transition Zone | 1200–1350°C | Severe thermal cycling, thermal stress, moderate erosion | Grade I/II high-alumina (60–70% Al₂O₃), mullite bricks | Dense clay bricks + thermal insulation composite layer |
Preheating Zone | 700–1000°C | Material impact, abrasive dust, low-temp corrosion | Grade III high-alumina, dense clay bricks | Steel fiber-reinforced castables (at feed inlet) |
Cooling Zone | 400–800°C | Gas flow erosion, mechanical abrasion, thermal gradient | Grade II high-alumina, clay bricks, SiC-composite bricks | Mullite insulation bricks + castable leveling layer |
Ⅱ. Key Technical Parameters of Mainstream Refractory Materials
1. Premium/Grade I High-Alumina Bricks (Calcining Zone)
- Composition: Al₂O₃ ≥75% (premium), 65–70% (Grade I)
- Performance: Refractoriness: ≥1790°C; Load Softening Point (T₀.₆): ≥1450°C; Cold Crushing Strength (CCS): ≥60 MPa; Thermal Shock Resistance (1100°C water quenching): ≥25 cycles
- Applications: Gas-fired pure oxygen kilns, high-temperature sections of large rotary kilns
- Customization: Zhengzhou KEWEI Refractories offers low-creep formulations.
2. Phosphate-Bonded High-Alumina Bricks (High-Temp Abrasion Zones)
- Bonding Agent: Phosphoric acid/aluminum phosphate
- Composition: Al₂O₃ 65–75%
- Performance:Service Temperature: 1400–1500°C; Superior erosion resistance and thermal shock stability vs. conventional high-alumina bricks; Excellent dimensional stability (minimal cracking).
- Applications: Rotary kiln firing zones, vertical kiln flame ports, twin-shaft kiln connecting channels
3. Silico-Mullite/SiC-Mullite Composite Bricks (High-Erosion Zones)
- Composition: SiC: 20–30%, Al₂O₃: 60–70%
- Performance: Abrasion Resistance: ≤5 cm³/50h (ASTM C704); Thermal Shock Resistance: ≥30 cycles; Strong resistance to alkaline dust erosion
- Applications: Cooling zones, kiln outlets, areas surrounding lances
4. Clay Bricks (Low-Temp/Non-Critical Zones)
- Composition: Al₂O₃ 30–48%
- Performance: Refractoriness: 1580–1670°C; Low cost, good thermal shock resistance but weak alkali resistance
- Applications: Preheating zones, outer cooling zone layers, auxiliary flues
5. Magnesia-Alumina Spinel Bricks (Premium Alkaline Environments)
- Composition: MgO: 15–25%, Al₂O₃: 70–80%
- Performance: Exceptional CaO erosion resistance; Temperature tolerance: ≥1600°C; 30%+ longer lifespan vs. conventional high-alumina bricks (rotary kiln calcining zones); Premium pricing
Ⅲ. Standard Specifications & Installation Requirements
Brick Dimensions
- Standard Sizes: 230×115×65/75 mm
- Specialty Shapes: Vertical kiln: G2 (345×150×130 mm), G4 wedge bricks; Rotary kilns: Custom-molded radial bricks

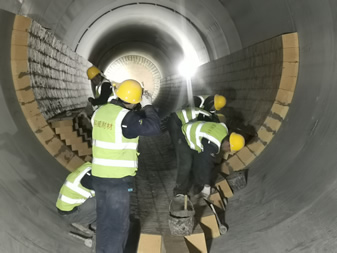

Masonry Guidelines
- Mortar Selection: High-alumina refractory mortar for high-temperature zones
- Curing Protocol: Avoid rapid heating post-wet installation
- Expansion Joints: Mandatory per engineering drawings
- Stress Concentration Zones: Reinforced with thickened specialty bricks+castable transitions (eg, kiln outlets, channels)
Thermal Insulation Composite
- Low-Temp Zones: Three-layer structure (refractory brick+mullite insulation brick+ceramic fiber blanket)
- Outcome: Reduces shell temperature to <180°C
IV. Procurement & Acceptance Standards
Supplier Qualification Requirements:
- ISO 9001 Quality Management System Certification
- Kiln Engineering Construction License
- In-house Physical & Chemical Testing Laboratory
- Third-Party Inspection Report (per ISO 10081:2023 or equivalent)
On-Site Inspection Criteria:
- Dimensional Tolerance: ≤±1 mm
- Surface Integrity: No through-cracks, chipping, or porosity defects
- Density Compliance: ≥2.60 g/cm³ for high-alumina bricks (per ASTM C134)
After-Sales Service Obligations:
- Professional masonry/maintenance team deployment
- Kiln drying curve documentation
- Lining service life assessment report
